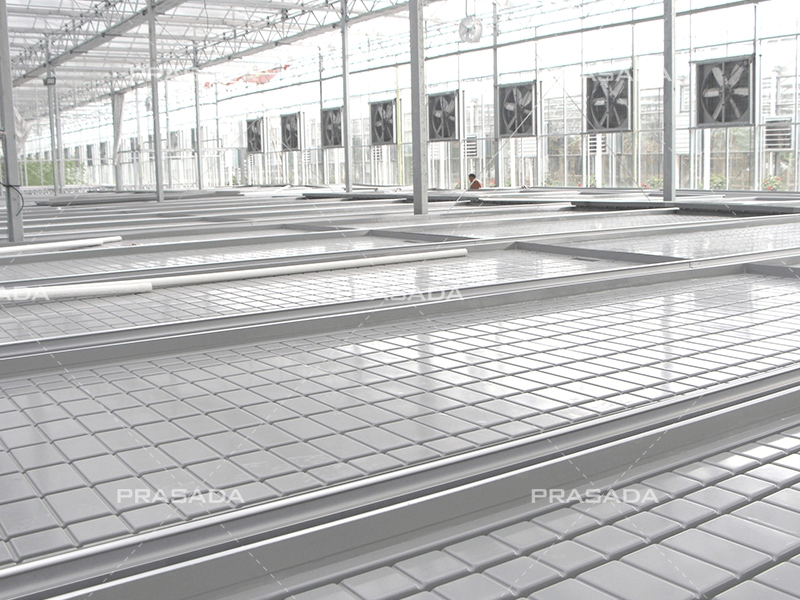

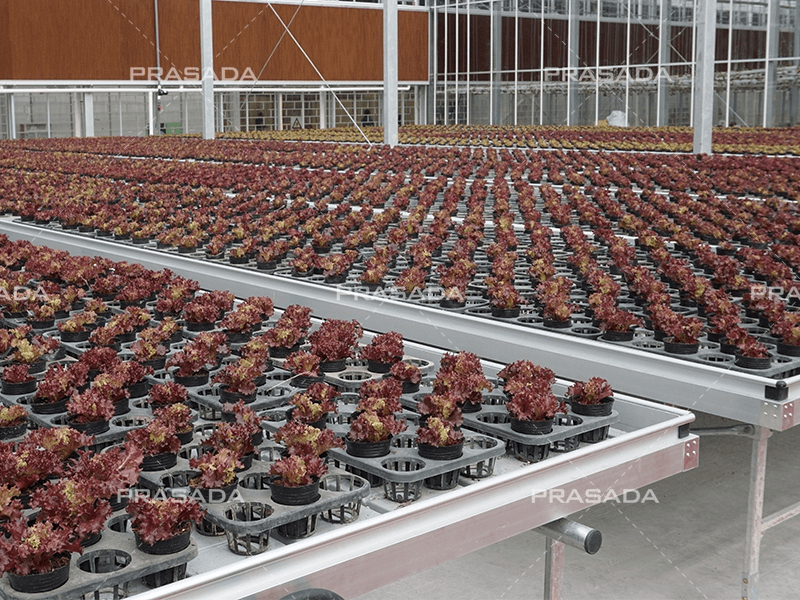

Ebb and Flow Bench System: A Water-Saving and Efficient Hydroponic Solution
The ebb and flow bench system, originating in Holland, is a sophisticated irrigation method for containerized plants. It offers a bottom-up watering and fertilization approach for hydroponic cultivation of potted plants, seedlings, and even medicinal hemp. As one of the most familiar hydroponic systems, it utilizes the ebb and flow principle to deliver regular watering and fertilizing cycles. Numerous studies have shown that crops grown using this system experience significantly better growth compared to traditional irrigation methods. Additionally, the ebb and flow system boasts a 33% reduction in water usage and minimizes the occurrence of ruffled and gangrene leaves.

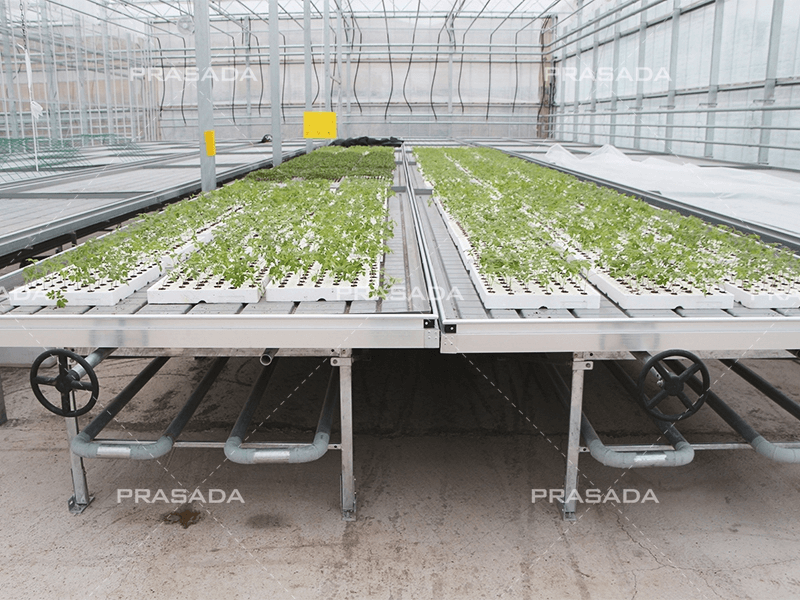

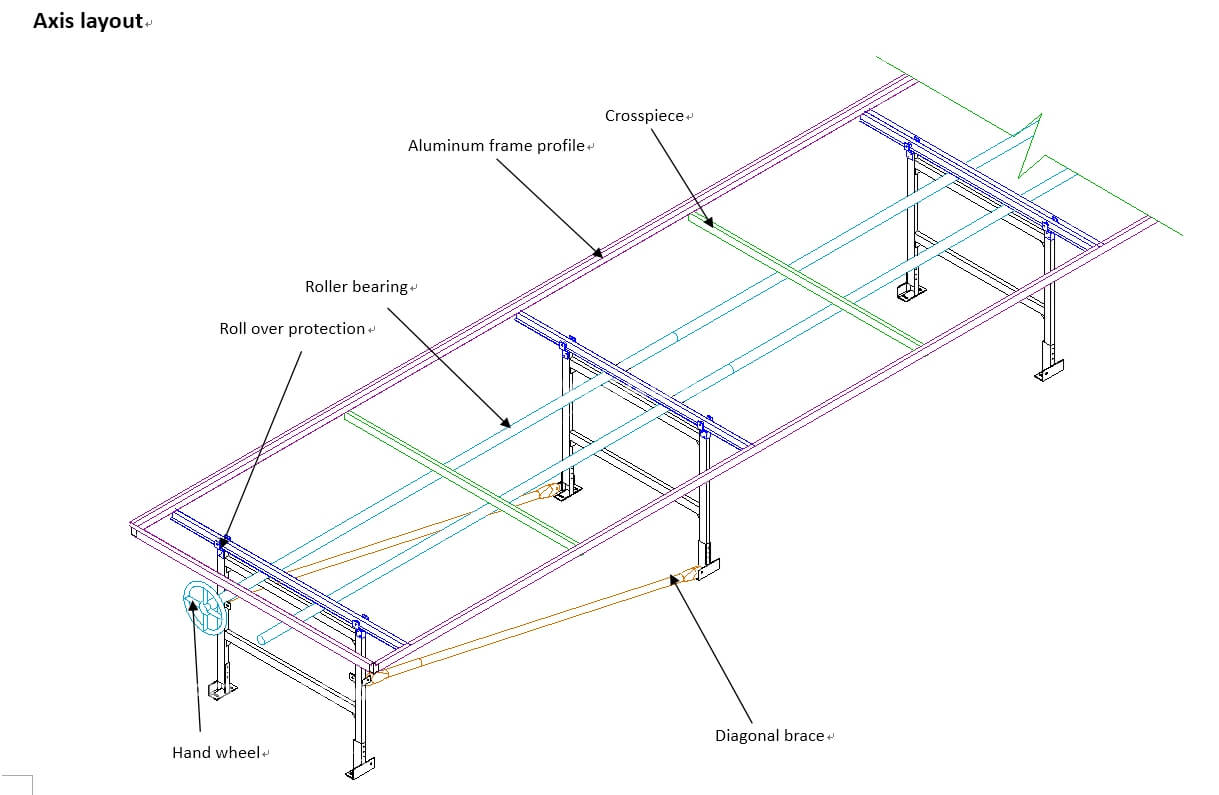

Components of an Ebb and Flow Growing Bench
● Seed Trays: Compression-molded from waterproof plastic, these trays act as the growing surface for your plants.
● Roller Bearings: These facilitate smooth movement of the benches, especially in larger greenhouse settings.
● Frame: The supportive structure of the bench system, typically constructed from aluminum.
● Hand Wheel: This allows for manual adjustment of the bench height.
● Crosspiece and Diagonal Brace: These components provide structural stability to the frame.
Operating Principle

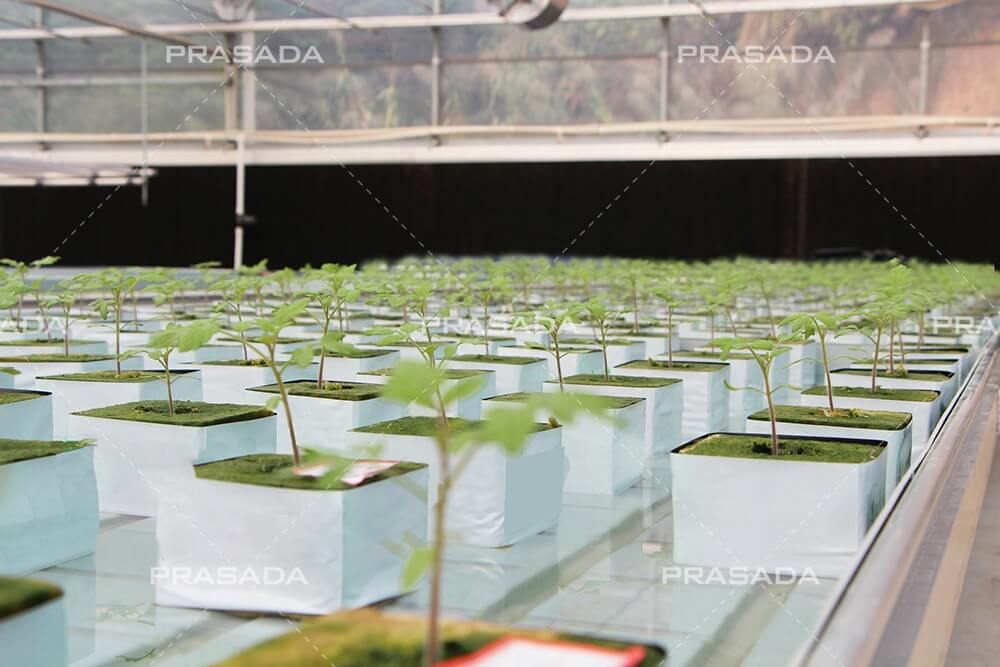

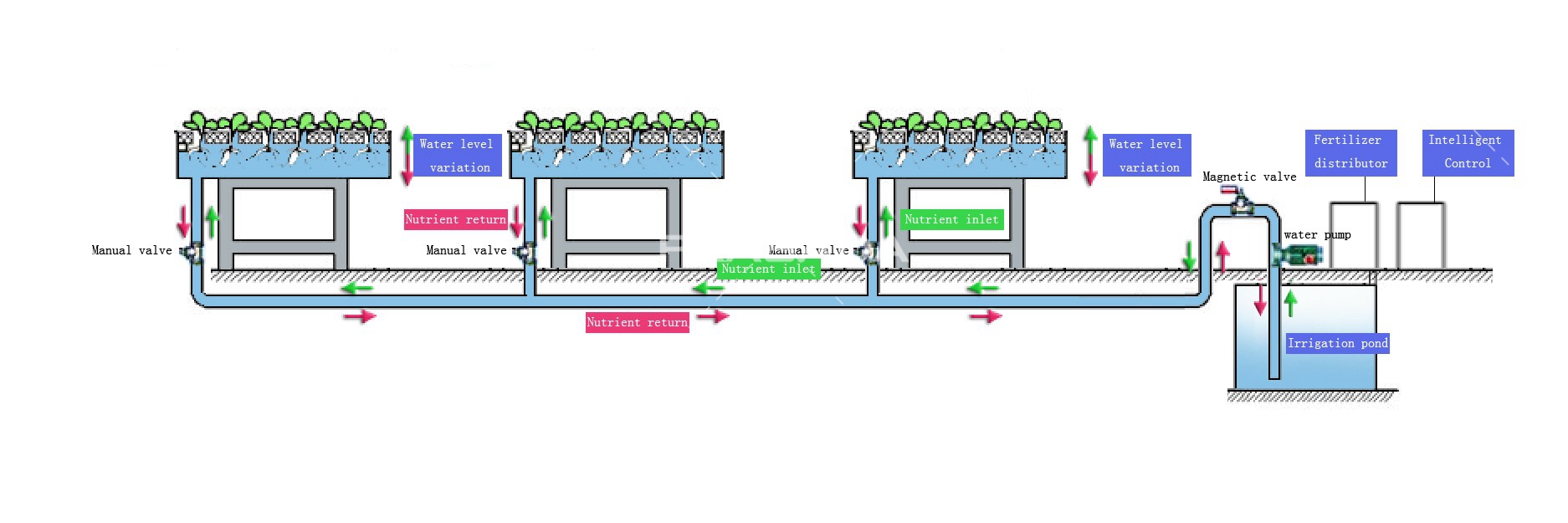

Plants are placed in open-bottomed containers (engraftment baskets) positioned on the seed trays. The nutrient solution from a dedicated tank is pumped and circulated to flood the growing bed, reaching a depth of 20-30mm for a predetermined time (usually 5-10 minutes). Capillary action then draws the solution up into the growing medium within the containers. After this saturation period, the nutrient solution drains away, either recycled for reuse or discharged directly.

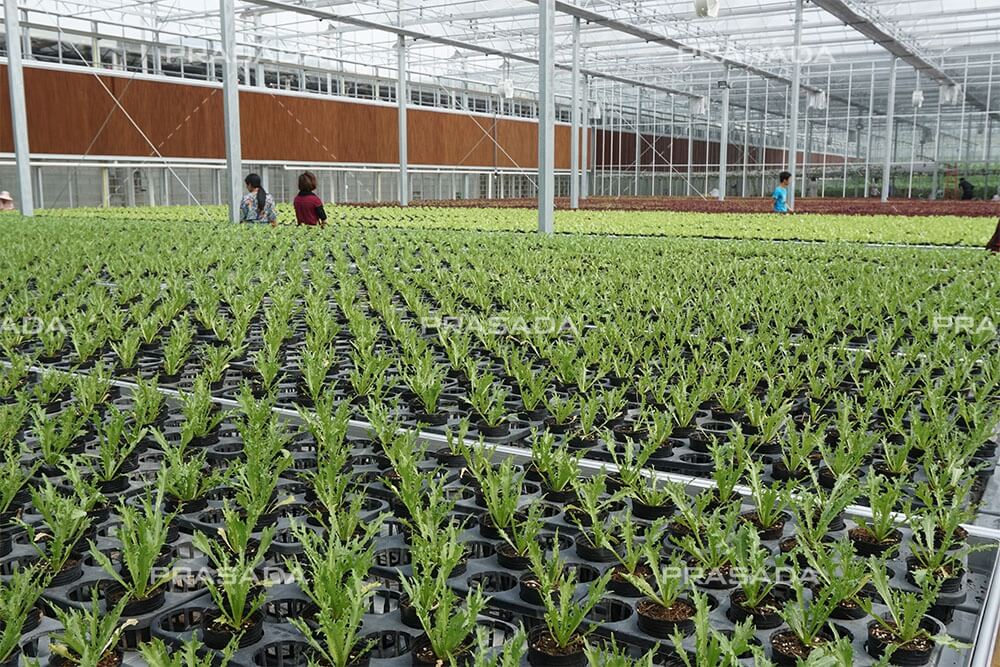

This system is ideal for cultivating a variety of crops, including vegetables (tomatoes, cucumbers, lettuce), flowers (cyclamen, poinsettia, chrysanthemums), and even medicinal hemp. Notably, the ebb and flow system can potentially shorten growing cycles.
Typical Irrigation Cycle
● Irrigation Time: 5-10 minutes
● Nutrient Solution Depth: 20-30mm
● Nutrient Solution Saturation Time: 5-10 minutes
● Drainage Time: 30-50 minutes (adjustable based on plant variety and growth stage)
Beyond the Basics: Additional Features of the Ebb and Flow System

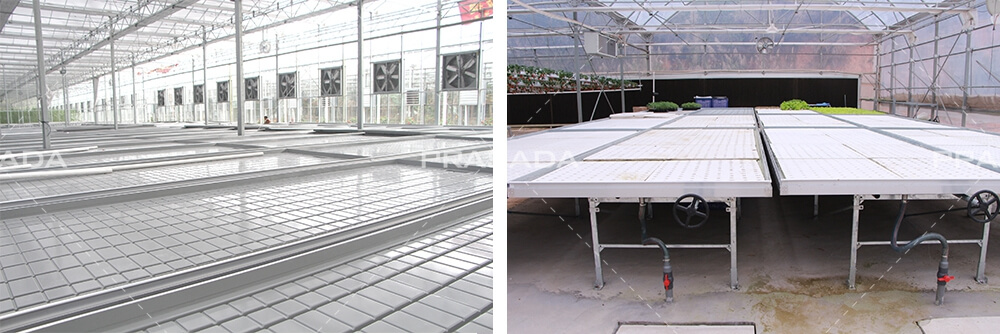

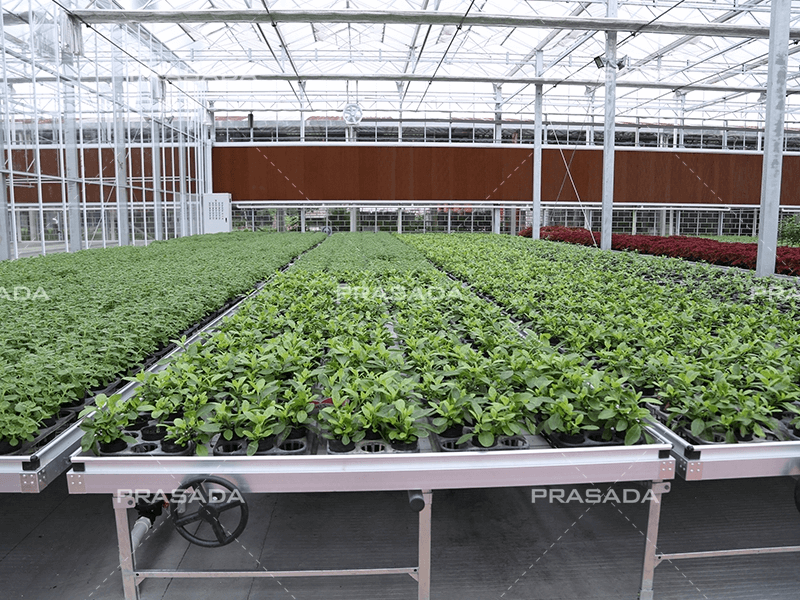

Commercial Greenhouse Hydroponic Ebb And Flow Bench System
Modern ebb and flow systems often incorporate a range of features to optimize plant growth and resource efficiency. These may include:
● Nutrient Solution System: This system ensures a continuous supply of fresh, well-mixed nutrient solutions without precipitation or concentration issues. The discharged solution is easily recycled and reused.
● Operation Control System: This system allows for automated control of irrigation cycles, ensuring consistent and precise watering.
● Disinfection System: This system helps maintain hygiene and prevent the spread of plant diseases.
● Oxygen Enrichment Device: Supplying additional oxygen to the root zone can further enhance plant growth.
Advantages of the Ebb and Flow Bench System
● Exceptional Resource Utilization: The system boasts a water and fertilizer utilization rate exceeding 90%, leading to significant cost savings.
● Reduced Labor Costs: Automated irrigation minimizes labor requirements. Even with manual operation, large areas can be efficiently irrigated, enhancing overall efficiency.
● Improved Crop Quality: Precise and uniform watering fosters consistent growth and high-quality crops.
● Faster Growth: Compared to traditional methods, the ebb and flow system can potentially accelerate growth, particularly during the seedling stage.
● Disease Prevention: Dry leaves help reduce the spread of fungal diseases.
● Enhanced Photosynthesis: Dry leaves allow for better light absorption, promoting photosynthesis and overall plant health.
● Versatility: The system can be used for a wide range of crops, from seedlings to mature plants.
● Ergonomic Design: The adjustable bench height minimizes strain on workers' backs.
● Reduced Slippery Surfaces: The well-drained channels minimize algae growth, creating a safer work environment.
● Sustainable Water Usage: The system captures and recycles irrigation water, minimizing waste and reducing reliance on freshwater resources.
The ebb and flow bench system offers a compelling solution for growers seeking to optimize water and fertilizer usage while achieving superior crop quality and yield. Its versatility, automation capabilities, and potential for faster growth make it a valuable tool for both hobbyists and commercial producers.
Seedling tray
High-impact plastic, UV, and anti-aging, resistance to common chemicals In greenhouse Food Grade ABS material, environmental protection material, each size:4440*1690*75mm or customized
Can use rock wool, trays for tomato, cucumber, green pepper, lettuce’s seedling
